HOBO MX2302A Wireless Temperature and Humidity Data Logger with External Sensor - Optional Remote Monitoring
- Low stock - 3 items left
This data logger from Onset is designed to withstand harsh indoor/outdoor conditions. View current data in real time with the free HOBOconnect app.
Communications
Access your data directly from your mobile phone, tablet or Windows computer when within 100 foot (30 m) line-of-sight range of the logger, with the free HOBOconnect app.
To enable cloud data storage and analysis, add an MX Data Plan (select from the options above).
To enable near real-time remote monitoring and alerts via email or text message, add an MX Data Plan and an MX Gateway (select from the options above). Note: the MX Gateway must be indoors.
You can download the HOBOconnect app here:
| Power | Battery Only |
|---|---|
| Power (Outdoor Unit) | Battery only |
| Batteries (Outdoor Unit) | 2/3 AA 3.6 volt lithium, user replaceable |
| Dimensions (Outdoor Unit) | Logger housing: 10.8 x 5.08 x 2.24 cm. External temperature sensor diameter: 0.53 cm. External temperature/RH sensor diameter: 1.17 cm. External sensor cable length: 2 m. Solar radiation shield bracket: 10.8 x 8.3 cm |
| HOBO Product Series | MX2300 |
| Measurements | Humidity, Temperature |
| Data Available By | Online, Mobile App, WiFi, Email, Ethernet, Wireless (Bluetooth/RF) |
Specifications
Temperature Sensor |
|
Range |
MX2302A external temperature sensor: -40 to 70°C (-40 to 158°F) |
Accuracy |
±0.25°C from -40 to 0°C (±0.45 from -40 to 32°F); ±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F) |
Resolution |
MX2301A and MX2302A: 0.02°C (0.036°F) |
Drift |
<0.01°C (0.018°F) per year |
Relative Humidity Sensor* (MX2301A, MX2302A only) |
|
Range |
0 to 100% RH, -40° to 70°C (-40° to 158°F); exposure to conditions below -20°C (-4°F) or above 95% RH may temporarily increase the maximum RH sensor error by an additional 1% |
Accuracy |
±2.5% from 10% to 90% (typical) to a maximum of ±3.5% including hysteresis at 25°C (77°F); below 10% RH and above 90% RH ±5% typical |
Resolution |
0.01% |
Drift |
<1% per year typical |
Response Time (typical, to 90% of change) — Temperature |
|
MX2302A external sensor; Without Solar Radiation Shield |
3 minutes, 45 seconds in air moving 1 m/sec |
MX2302A external sensor; With RS1/M-RSA Solar Radiation Shield |
7 minutes, 45 seconds in air moving 1 m/sec |
MX2302A external sensor; With RS3-B Solar Radiation Shield |
6 minutes, 30 seconds in air moving 1 m/sec |
Response Time (typical, to 90% of change) — RH |
|
MX2302A external sensor; Without Solar Radiation Shield |
15 seconds in air moving 1 m/sec |
MX2302A external sensor; With RS1/M-RSA Solar Radiation Shield |
30 seconds in air moving 1 m/sec |
MX2302A external sensor; With RS3-B Solar Radiation Shield |
30 seconds in air moving 1 m/sec |
Specifications (continued) — Logger |
|
Operating Range |
-40° to 70°C (-40° to 158°F) |
Radio Power |
1 mW (0 dBm) |
Transmission Range |
Approximately 30.5 m (100 ft) line-of-sight |
Wireless Data Standard |
Bluetooth Low Energy (Bluetooth Smart) |
Logging Rate |
1 second to 18 hours |
Logging Modes |
Fixed interval (normal, statistics) or burst |
Memory Modes |
Wrap when full or stop when full |
Start Modes |
Immediate, push button, date & time, or next interval |
Stop Modes |
When memory full, push button, date & time, or after a set logging period |
Time Accuracy |
±1 minute per month 0° to 50°C (32° to 122°F) |
Battery Type |
2/3 AA 3.6 Volt lithium, user replaceable |
Battery Life |
2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life. |
Memory |
MX2301A and MX2302A: 128 KB (63,488 measurements, maximum) |
Full Memory Download Time |
Approximately 60 seconds; may take longer the further the device is from the logger |
Dimensions |
Logger housing: 10.8 x 5.08 x 2.24 cm (4.25 x 2.0 x 0.88 in.); External temperature sensor diameter: 0.53 cm (0.21 in.); External temperature/RH sensor diameter: 1.17 cm (0.46 in.); External sensor cable length: 2 m (6.56 ft); Solar radiation shield bracket: 10.8 x 8.3 cm (4.25 X 3.25 in.) |
Weight |
Logger: 75.5 g (2.66 oz); Solar radiation shield bracket: 20.4 g (0.72 oz) |
Materials |
Acetal, silicone gasket, stainless steel screws |
Environmental Rating |
NEMA 6 and IP67 |
Full details are in the datasheet and manual under Resources & Downloads.
- HOBO MX2302 Ext Temp/RH Data Logger
- Screws
- Cable ties
This item is priced on application. Tell us what you need and we'll send you a quote.
Or call us on 01243 558270
Buying in Volume, or Just Want Some Helpful Advice?
Call +44 (0)1243 558270, or fill out our contact form.

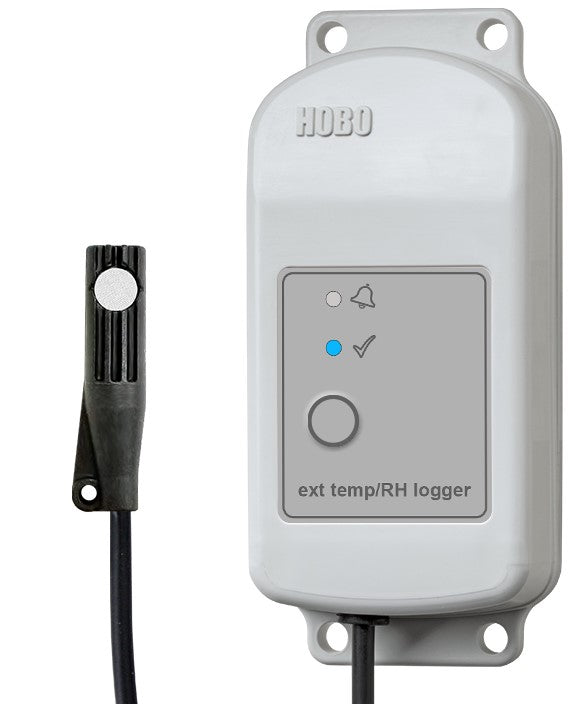

The HOBO MX2302A is a weatherproof data logger with external temperature and relative humidity sensors. Leveraging Bluetooth Low Energy, the logger enables easy, fast set up and data download directly from your mobile device or Windows computer.
Key Features
- Convenient wireless setup and data download via Bluetooth Low Energy
- View current data in real time with the free HOBOconnect app
- Receive alert notifications for out-of-range conditions on the data logger and app
- Retrieve data in hard-to-reach locations
- Compact, weatherproof housing with built-in mounting system
- Accuracy: +/- 0.2C° and +/- 2.5% RH.
Requires a compatible mobile device or Windows computer and the HOBOconnect app.
